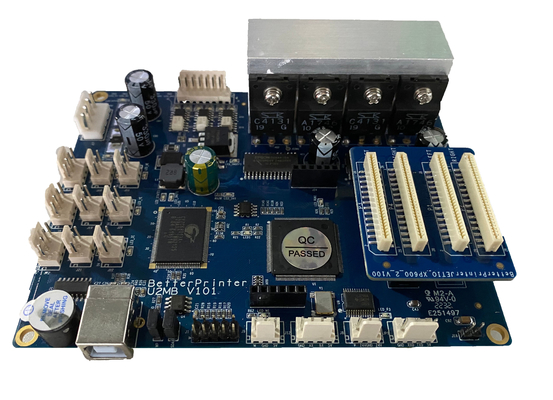

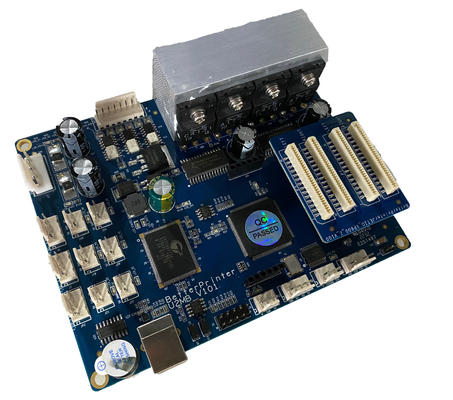

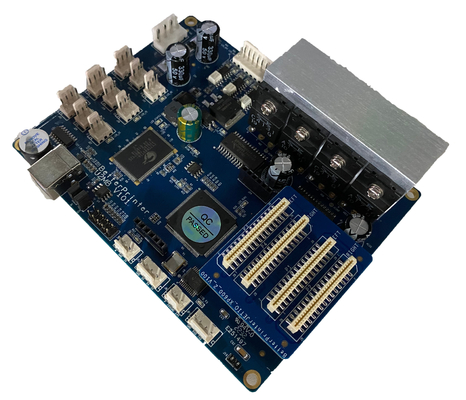

All In One XP600 TX800 Double Head Main Board Better Printer Kit For A3 DTF Printer UV Flatbed Printer

All in one board XP600 TX800 double head main board Better Printer kit for A3 DTF Printer UV Flatbed Printer

This scheme provides a variety of sprinkler head arrangement and spot color Settings, such as misalignment (patchwork) full color, white color out, side by side, side by side 8 colors (kcmy+4 spot color), photo machine, UV roll, flat machine, etc., are provided with mature schemes, feather between the sprinkler heads (uniform feather) mode. The control system is composed of one motherboard, saving cost.

1.Data interface: USB 2.0 cable connection to PC.

2.Main board Specifications: 135mm*105mm.

3.Board card support: Single headed, double headed.

4.Supported Print head type: EpsonI3200,4720,W5113,7610,TX800,XP600,DX5,DX7,TX600,RicohG5I.

5.Function Support: Anti-collision refill, automatic height measurement, device power down refill, automatic reset, line down refill, out of paper detection, ink stack self-test, etc.

6.RIP- Software: Mainstream RIP software such as Mengtai, Photoprint, Rui Cai, ONYX, Wasatch, etc.

7.Field of Application: Advertising photo printing, UV board, textile printing, carton printing, PCB printing and other industries.
