USB3.0 Inkjet Printer Kit I3200 Four Head For PET Film Heat Transfer Printer
| Place of Origin | Changsha, China |
|---|---|
| Brand Name | BetterPrinter |
| Model Number | U3FMB_V101，EFMHB_V103 |
| Minimum Order Quantity | 20 sets of |
| Packaging Details | Carton |
| Delivery Time | 3-10 work days |
| Payment Terms | Bank transfer / WeChat / Alipay |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| MAIN BOARD SPECIFICATIONS | 182mm*112mm | HEAD BOARD SPECIFICATIONS | 240mm*172mm |
|---|---|---|---|
| COLOUR | Blue | APPLICATION NOZZLE MODEL | 4720,W5113,I3200,TX800,XP600,DX5,DX7,7610 |
| BOARD TYPE | Inkjet Printer Four Head Control Board | MODEL | I3200 Printhead |
| USE FOR | Inkjet Printer | PLACE OF ORIGIN | Changsha, China |
| Highlight | USB3.0 Inkjet Printer Kit,I3200 Inkjet Printer Kit,PET Film Heat Transfer Printer Board |
||
Product Description
USB3.0 inkjet printer kit I3200 four head use for PET film heat transfer printer
USB3.0 optical fiber inkjet printing control system, application nozzle model: I3200, using optical fiber cable connection, fast transmission speed, supporting various nozzle arrangements and spot color settings.
There are mature solutions for photo printing machines, flatbed machines, belt guides, rotating circular treadmills, circular elliptical machines, corrugated paper printers, leather machines, etc.
| Name | USB3.0 Optical fiber Inkjet Printer Board | Main board model | U3FMB_V101 |
| Nozzle model | Epson I3200 | Head board model | EFMHB_V103 |
| Data interface | 1.25G optical fiber (expandable dual optical fiber) is connected to the spray car board, and the USB3.0 cable is connected to the computer | Nozzle features | Can print water-based, thermal transfer, paint, eco-solvent, UV and other inks |
| Color channel | 8 channels/8 colors | Trolley speed | 1.2M/S |
| Effective print width of print head | 1.33 inches | Number of nozzles | 3200 |
| Nozzle protection | Nozzle reverse connection protection, stimulating nozzle (flash spray), short circuit protection | Ignition frequency | 30KHz |
| Board support | Single head, double head, three head, four head, six head, eight head, twelve head, sixteen head | Function support | Anti-collision and continuous printing, automatic height measurement, variable point printing, device power failure and continuous printing, USB automatic reset, USB disconnection and continuous printing, paper out detection, ink stack self-check, etc. |
| RIP-software | Mainstream RIP software such as Mengtai, Photoprint, Rui Cai, ONYX, Wasatch, etc. | Application field | Can be used for advertising, UV flat panel, digital printing and other industries |
Application machine:
Elliptical digital machine, stamping painting machine,heat transfer machine, belt guide machine, carton machine, etc.
Features of the textile printing scheme: stable products and fast speed. Humanized operation interface, one-time setting, repeated printing, easy to operate. A variety of printing modes are available for customers to choose to meet different printing quality or production needs.
The main working process of textile printing and dyeing: fabric sizing, digital printer will spray the pattern on the fabric, oven high temperature drying, steaming, washing. Simplifies the traditional dyeing process, saving a lot of manpower, material resources and time. Use variable dot technology to make print patterns more delicate and colors more vivid.
Oval digital printing features: simple operation, can realize automatic printing of multiple colors and patterns, comes with a drying function, the printing is not easy to damage, the printing quality is good, it can be combined freely, and the degree of automation is high. The ultimate printing effect on clothing provides an effective solution for digital application technology.
Application scenario:
Clothing color printing Textile printing Textile digital printing Carton printing
Product Show:

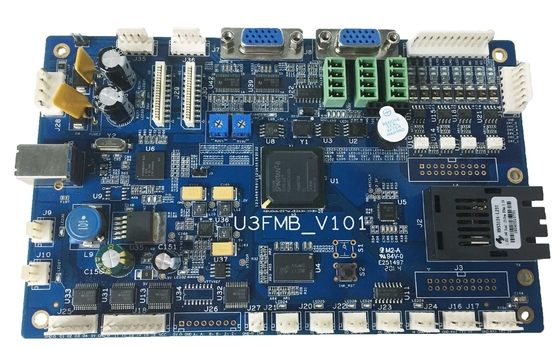

Main board

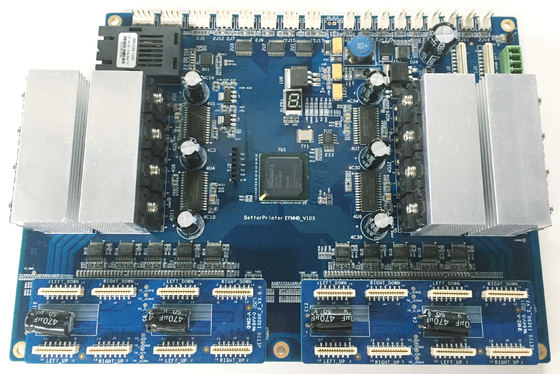

Head board

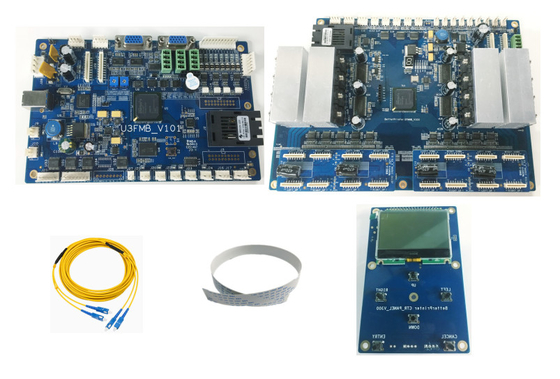

I3200 Inkjet Printer Board suit
Seller promise:
1. If you have any problems when shopping, please contact us.
2. Please feel free to contact us if you need technicial support .
3. All products we sold with high quality and factory price .
4. We will provide technical guidance and printing software after the buyer receives the goods.
Packaging & Shipping:
1. All shipping time depends on different countries. We have no control over the delivery time as it is handled by a third party service.
2. Most of online products are in stock , Shipping by DHL,order will be sent within 3 to 10 days after get the payment . Will immediately send you the waybill and remind you to receive the goods.So you don't have to worry about losing goods.
Way of Payment:
Bank transfer,wechat,Alipay, etc.
All for your choice ! ! !
Packing details:
Inner Package : bubble plastic bag.
Outter package : Carton.
⇒⇒⇒⇒
