Inkjet board set Better Printer Network Interface XP600 double head for white ink pyrography printer

Place of Origin Changsha, China
Brand Name BetterPrinter
Model Number ETHWMB_V101,WHB_XP600_2J_V104,XP600
Minimum Order Quantity 20 sets
Packaging Details Carton
Delivery Time 3-10 work days
Payment Terms TT/Bank transfer / WeChat / Alipay

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Main Board Specifications 200mm*111mm Head Board Specifications 94mm*123mm
Applicable Model 4720,W5113,I3200,TX800,XP600,DX5,DX7,7610 Use For Industrial Inkjet Printer
Type Kit Board Nozzle Model XP600 Printhead
Board Type Inkjet Printer Control Board After Warranty Service Warranty Is For 12 Months
Highlight

V200 Inkjet Printer Control Panel

,

V200 printer control panel

,

1602 printer lcd screen

Leave a Message
Product Description

Network Interface XP600 double head inkjet board kit for white ink pyrography printer





Quick Details:



Gigabit network flat line inkjet printing control system, cost-effective and fast. Various print head arrangements and spot color settings are available, such as staggered arrangement (split arrangement) full color, white color with same output, side-by-side, side-by-side 8 colors (kcmy+4 spot colors), etc.

Data interface Network cable is connected to the computer, Flexible flat cable to the head board
Color channel 6 channels/6 colors
Number of nozzles 1080
Ignition frequency 30KHz
Nozzle features Can print water-based, thermal transfer, paint, eco-solvent, UV and other inks
Nozzle protection Nozzle reverse connection protection, stimulating nozzle (flash spray), short circuit protection
Board support Single head, double head, four head, eight head
Trolley speed 1.2M/S
Effective print width of print head 1 inches
RIP-software Mainstream RIP software such as MainTop, Photoprint, UltraPrint, ONYX, Wasatch, etc





Application machine:



Wall printers, ground machines, photo machines, small-format flatbed printing,white ink scald transfer machine,etc.



The flatbed printing system can perform color photo-level printing on wood, glass, crystal, PVC, ABS, acrylic, metal, plastic, stone, leather, cloth, and other textile surfaces. The product is stable, the interface is simple, the operation is convenient, and the printing speed is fast.



The wall printer is a machine and equipment that prints patterns on the wall. It uses mobile printing to spray the patterns on the wall. You can paint on walls, rice paper, brick walls, diatom mud, ceramic tiles, glass, etc. You only need to set the picture size to paint. Wall printers have low printing costs, high printing accuracy and better results, which can save time and labor.

Floor machine: a machine that can print on floors, wooden floors, and tile floors. For example: ground painting of parking spaces, etc.



The advantage of white ink heat transfer is that it can transfer high-precision pictures and other colorful designs. It can be applied to: T-shirts, pants, bags, leather, children's clothing, women's clothing, umbrellas, gloves, hats, etc.





Application scenario:



Inkjet board set Better Printer Network Interface XP600 double head for white ink pyrography printer 0




Product Image:

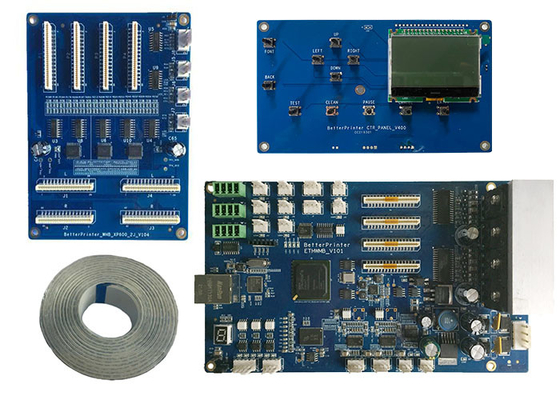

Inkjet Printher Control Board XP600 Suite

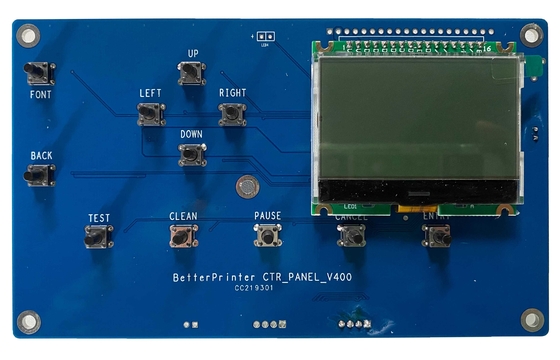

Inkjet board set Better Printer Network Interface XP600 double head for white ink pyrography printer 1

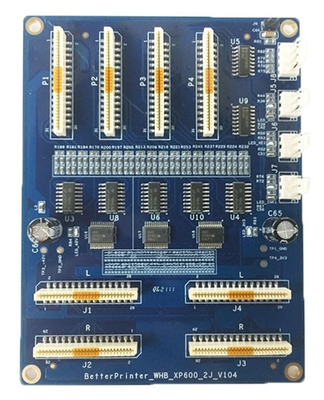

Inkjet board set Better Printer Network Interface XP600 double head for white ink pyrography printer 2







Our Service:

1. XP600 double head printer board Ships after testing. The warranty is Twelve months.

2. The products are strictly packed to ensure the safety of the products during transportation.We care more about the safety of products delivered than you~ please rest assured!

3. If you have any requirments and questions about our products,please contact us by WeChat or the phone,We will try our best to solve the problem for you.



► If you need a detailed list of the accessories included in the kit, please contact us.

► Shipping costs vary according to country, please contact us for specific shipping costs.

►We will provide technical guidance and printing software after the buyer receives the goods.





Packing details:



Inner Package : bubble plastic bag.



Outter package : Carton.

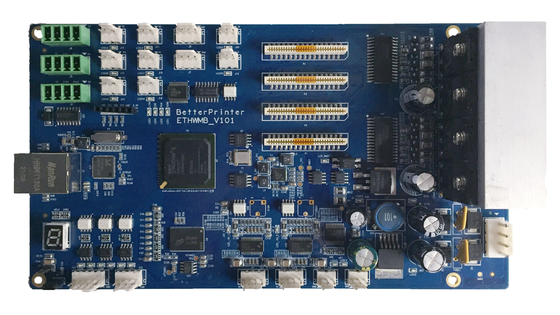

Inkjet board set Better Printer Network Interface XP600 double head for white ink pyrography printer 3
