Inkjet printer control system 4720 single head use for UV flatbed printer network port
| Place of Origin | Changsha, China |
|---|---|
| Brand Name | BetterPrinter |
| Model Number | ETHWMB_V101,WHB_W5113_1J_V105,4720 |
| Minimum Order Quantity | 20 sets of |
| Packaging Details | Carton |
| Delivery Time | 3-10 work days |
| Payment Terms | TT/Bank transfer / WeChat / Alipay |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Main Board Specifications | 200mm*111mm | Head Board Specifications | 94mm*123mm |
|---|---|---|---|
| Applicable Model | 4720,W5113,I3200,TX800,XP600,DX5,DX7,7610 | Feature | Original And Brand New |
| Use For | Industrial Inkjet Printer | Nozzle Model | 4720 Printhead |
| Type | Kit Board | Applicable Industries | Advertising Photo, UV Flatbed Printing, Etc |
| Highlight | Ink Output Control Inkjet Board,Double Head Photo Machine Inkjet Board,Double Head fiber optic board |
||
Product Description
Use for UV flatbed printer photo printer control board kit 4720 single head network port inkjet board
Quick Details:
This program provides various print head arrangements and spot color settings, such as staggered arrangement (split arrangement) full color, white color with the same output, side-by-side, side-by-side 8 colors (kcmy+4 spot colors), etc. Photo machines, UV coils, flatbed machines, etc. are all provided with mature solutions, and the feathering method provides the feathering (uniform feathering) mode between the nozzles.
| Data interface | Network cable to connect to the computer, flexible flat cable is connected to the head board |
| Color channel | 8 channels/8 colors |
| Effective print width of print head | 1.33 inches |
| Nozzle features | Can print water-based, thermal transfer, paint, eco-solvent, UV and other inks |
| RIP-software | Mainstream RIP software such as Mengtai, Photoprint, Rui Cai, ONYX, Wasatch, etc |
Application machine:
Photo printer, UV Flatbed Printer,Wall printer, Ground printer,PCB character printing,etc.
Features of UV printing solution: easy to use and operate, no plate making and repeated color registration process, easy to operate and maintain. The use of environmentally friendly UV ink, spray and dry, stable printing, bright colors, high curing strength, low curing energy, environmental protection and no odor. The use of varnish can enhance the brightness effect of the image surface, and the adhesion of varnish on the surface of the image can also protect the image to a certain extent.
The wall printer is a machine and equipment that prints patterns on the wall. It uses mobile printing to spray the patterns on the wall. You can paint on walls, rice paper, brick walls, diatom mud, ceramic tiles, glass, etc. You only need to set the picture size to paint. Wall printers have low printing costs, high printing accuracy and better results, which can save time and labor.
Application scenario:
Product Image:

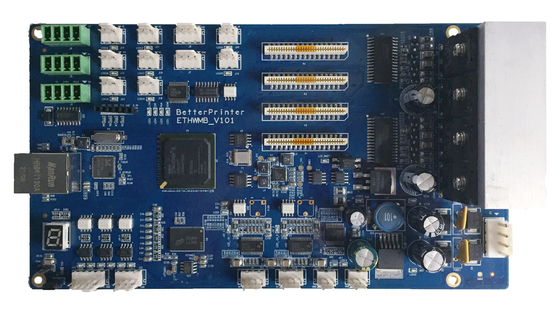

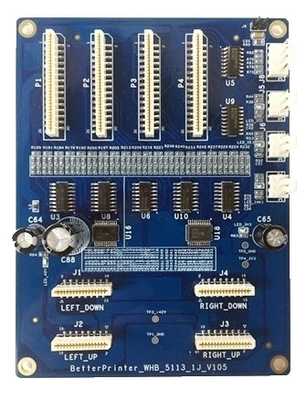

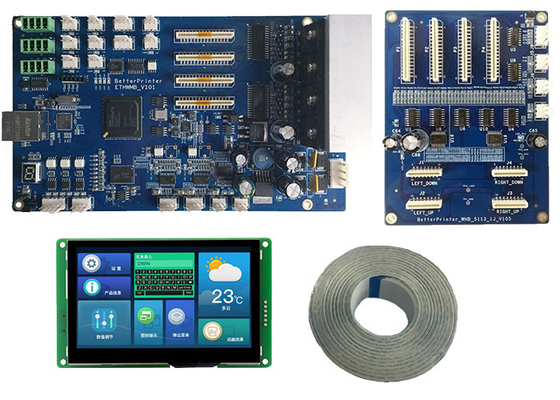

Inkjet Printher Control Board 4720 Suite
Our advantages and services:
1. Software development engineers have been engaged in the development and research of industrial printing systems for many years, and will provide more accurate and efficient industrial inkjet printing control system development and services.
2. Technical service engineers are familiar with the company's products and applications, and have a strong ability to analyze and solve problems. A professional after-sales technical service team ensures that your product quality is better.
3. The company's products have been successfully applied to many industries, and have reached a high level in terms of color effect and printing speed efficiency.
4. We have a strict board test process to ensure that customers enjoy high-quality printed products.
Packing details:
Inner Package : Bubble plastic bag.
Outter package : Carton.
