XP600 Inkjet Printer System Network Interface Single Head Use For Wall Printer Floor Printer
| Place of Origin | Changsha, China |
|---|---|
| Brand Name | BetterPrinter |
| Model Number | ETHWMB_V101，WHB_XP600_1J_V103，XP600 |
| Minimum Order Quantity | 20 sets of |
| Packaging Details | Carton |
| Delivery Time | 3-10 work days |
| Payment Terms | Bank transfer / WeChat / Alipay |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Main Board Specifications | 200mm*111mm | Head Board Specifications | 63mm*123mm |
|---|---|---|---|
| Applicable Model | 4720,W5113,I3200,TX800,XP600,DX5,DX7,7610 | Colour | Blue |
| Use For | Industrial Inkjet Printer | Type | Kit Board |
| Nozzle Model | XP600 Printhead | Feature | Original And Brand New |
| Highlight | XP600 Printer Control Board,XP600 Inkjet Printer Accessories,Flatbed XP600 Inkjet Printer System |
||
Product Description
XP600 Inkjet Printer System Network Interface Single Head Use For Wall Printer Floor Printer
Network Interface XP600 inkjet printing control system, using flexible flat cable connection, cost-effective.Provides various nozzle arrangements and spot color settings, such as staggered (arranged) full color, white color at the same time, side by side, side by side with 8 colors (kcmy+4 spot colors), etc.
| Name | Network port XP600 Inkjet Printer Board |
| Data interface | Network cable to connect to the computer, flexible flat cable to the head board |
| Color channel | 6 channels/6 colors |
| Function support | Anti-collision and continuous printing, automatic height measurement, variable point printing, device power failure and continuous printing, automatic reset, disconnection and continuous printing, paper out detection, ink stack self-check, etc |
| Number of nozzles | 1080 |
| Nozzle features | Can print water-based, thermal transfer, paint, eco-solvent, UV and other inks |
| Nozzle protection | Nozzle reverse connection protection, stimulating nozzle (flash spray), short circuit protection |
| Board support | Single head, double head, four head, eight head |
| RIP-software | Mainstream RIP software such as MainTop, Photoprint, UltraPrint, ONYX, Wasatch, etc |
Application machine:
Wall Printer, Floor Printer, Photo printer, UV Flatbed Printer, White ink pyrography Printer,etc.
The flatbed printing system can perform color photo-level printing on wood, glass, crystal, PVC, ABS, acrylic, metal, plastic, stone, leather, cloth, and other textile surfaces. The product is stable, the interface is simple, the operation is convenient, and the printing speed is fast.
The Photo machine prints the colorful patterns on the special materials with the printheads. It is generally used in advertising, graphics, and CAD industries. It has high precision and long life of the printhead. The photo machine solves the shortcomings of gray color and high machine purchase cost, And it can make a variety of inks for users, such as indoor and outdoor, widely used in many industries.
The wall printer is a machine and equipment that prints patterns on the wall. It uses mobile printing to spray the patterns on the wall. You can paint on walls, rice paper, brick walls, diatom mud, ceramic tiles, glass, etc. You only need to set the picture size to paint. Wall printers have low printing costs, high printing accuracy and better results, which can save time and labor.
Application scenario:
Wall color printing Ground painting Tile printing
Product Images:

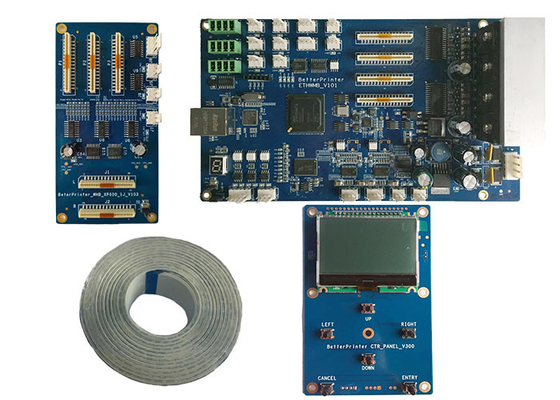

XP600 Inkjet Printer Board Kits

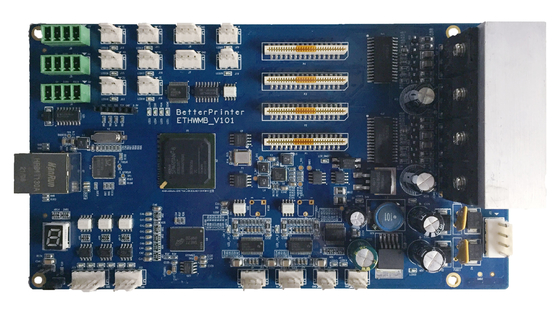

Main board

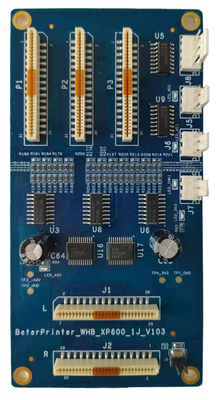

Single head board
OUR SERVICE:
1. All products we sell have been passed strict inspection before shipment.We will try our best to avoid any quality problem in advance.
2. We will send the tracking number to you after you make the payment for us .And we will refresh the tracking infomation for you .
3. If you have any questions both before ordering and after ordering,please feel free to contact us. We will do the best service for you !
There are 4 inspections in the process of production and shipment:
1. Raw material inspection.
2. Production testing.
3. Board card printing detection.
4. Board shipment inspection.
Packing details :
Inner Package : Air bubble bag, bubble film.
Outter package : Pearl cotton, special cardboard box.
⇒⇒⇒ ⇒
